CTL-Sync by PedalSync

Buy NowClassic Effect Synchronizer
by Molten Voltage

CTL-SYNC™ is a simple-to-use Classic Effect Synchronizer that connects to the CTL or Tap Switch Input Jack of classic effects and switches in sync with MIDI Clock at one of nine (9) musical ratios.

CTL-SYNC synchronizes classic effects from BOSS, EHX, JHS, Visual Sound, and many others. Check out the list below...



Syncing your Classic Effects has never been easier!

angled



Sync Classic Effects that have a 1/4" tap switch jack, including:

BOSS | DD-20 Giga-Delay | DD-7 Delay | DD-5 Delay | PH-3 Phase Shifter | AW-3 Dynamic Wah |
ME-8 Guitar Multiple Effects | ME-8B Bass Multiple Effects |

JHS Pedals | Panther Cub Delay | Panther Analog Delay | angled Emperor Analog Chorus / Vibrato |

Strymon | Flint Tremolo & Reverb |

Visual Sound | Dual Tap Delay |

Marshall | EH-1 Echohead Delay |

Molten Voltage | TOGGLE |

Empress Effects | Phaser | Tremolo 2 |

Throne Room Pedals | Tremolo |

Bomes Electric | Ape Delay |

TC Electronic | G-Force |

Alesis | Quadraverb 2 | Quadraverb Q20 |

Catalinbread | Sempahore Tremolo |

Providence | Chrono Delay |

Moog | MF-105 MuRF | MF-105b Bass MuRF |

Walrus Audio | Bellweather Analog Delay |

AnalogMan | ARDX20 Dual Analog Delay with AMAZE0 interface |

Cusack* | Tap-A-Scream | Tap-A-Fuzz | Tap-A-Delay | Tap-A-Phase | Tap-A-Whirl | Tiny Tap Delay | *Cusack pedals require a 1/4" to RCA cable



MIDI Clock


MIDI Clock comes from computers, sequencers, or from these Molten Voltage MIDI PedalBoard Devices:

MASTER CONTROL MV-58B™ is a simple-to-use MIDI PedalBoard Controller that turns on and off effects, selects presets, and synchronizes gear to MIDI Clock.




TEMPODE™ is a simple-to-use MIDI Clock Generator that synchronizes cutting-edge effects from Strymon, Eventide, MOOG, BOSS, EHX, and many others! Use TEMPODE if you already have a MIDI PedalBoard Controller or if you just need a stand-alone device.



Sync Line 6 devices and the Behringer V-Amp to MIDI Clock using SIXY by Molten Voltage.

Line 6 | M13 | Pocket POD | Floor POD Plus | POD 2.0 | POD Pro | POD XT | Bass POD XT | POD X3 Live | POD X3 Pro |
Vetta II | Vetta II HD | Flextone III | HD 147 |

Behringer | V-Amp |



Key Features

• Synchronize your PedalBoard’s Classic effects to MIDI Clock

• Works with numerous classic effects including the BOSS PH-3 Phase Shifter, AW-3 Dynamic Wah, and DD-7 Delay

• Works with any effect that allows connection of a remote tap footswitch

• Two (2) Independent Switch Outputs

Ratio controls multiply or divide the outputs against the incoming clock into one of nine (9) musical ratios

• Stores and recalls distinct Output Ratio for each output

Simple to program - toggle a switch!

Optically Isolated Outputs ensure 100% electrical isolation of audio and digital signals

• Compact design for modular PedalBoard layouts

• Solid, Professional-Grade construction, including Riveted Steel MIDI Jacks

• Molten Voltage MIDI technology allows remote, synchronized self-programming

• Robust, 128 program storage

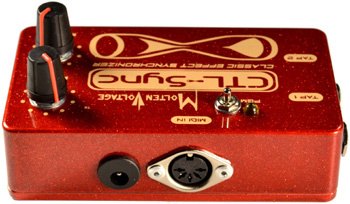

CTL-Sync rear
CTL-SYNC
is powered by standard "BOSS" type 9-volt DC, 2.1mm, 200mA min., tip negative power supply (sold separately). Current draw ~ 120mA.

Dimensions: 4.7" (120mm) Wide x 2.6" (66mm) Deep x 2.0" (51mm) Tall

Bomb-proof design ensures flawless functioning.  Road-ready MIDI Machinery™.

Hand built in Oregon, USA by Molten Voltage.





Control Sync Owner's Manual CTL-SYNC Owner's Manual
