MV-58

MV-58B

MIDI PedalBoard Clock and Brain
by Molten Voltage

DISCONTINUED

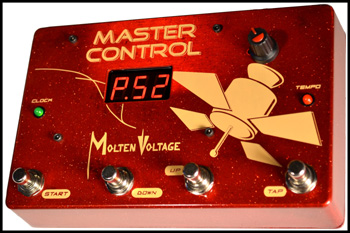

MASTER CONTROL MV-58™ is a simple-to-use PedalBoard MIDI Controller Footswitch that turns on and off effects, selects presets, and synchronizes over 50 cutting-edge effects from Strymon, Eventide, MOOG, BOSS, EHX, and many others! Check out the list below...

MASTER CONTROL sends Program Change messages and MIDI Clock data and also stores the tempo for 128 programs.



"Finally a free-standing, small, easy-to-operate, rock-solid, non-computer-based source of MIDI Clock." - Tape Op Magazine







MASTER CONTROL MV-58B™ with Side Controllers features four (4) flexible side controllers, and program selection in the familiar Bank/Patch display mode. The side controllers are used to select the 8 programs in each of the 16 banks. The display on the left indicates Bank 2, Program 7. You can use 1, 2, 3, or all 4 side controllers, as needed.



Synchronizing and Controlling your PedalBoard has never been easier!






angled



TapeOp

"MASTER CONTROL is a simple and intuitive interface that all of us started using effortlessly in about ten seconds of trial."

"Master Control puts the clock source in the hands of the musicians and gets it out of the studio computer".

"MIDI clocks coming out of a DAW interface are unreliable and actually make the music feel saggy. Master Control was rock solid."

"The start/stop function was so fast that it felt as if we were pressing buttons on the units receiving the signal, not an upstream device.

"Master Control instantly became an integral and intuitive part of the rig."



MIDI Clock is the standard way to synchronize modern PedalBoard effects.

The list of Effects that Sync to MIDI Clock just keeps growing!

Strymon | Mobius | TimeLine | BigSky |

Eventide | TimeFactor | ModFactor | PitchFactor | Space Reverb | H9 | Eclipse |

MOOG | MF-104M - Analog Delay | MF-104MSD - Super Delay | MF-105M MIDI MuRF |
MF-108M - Cluster Flux |

Line 6 | M13 Stompbox Modeler | M9 Stompbox Modeler | M5 Stompbox Modeler | Pod HD500X |
Pod HD Pro X | Echo Pro | Mod Pro | Filter Pro |

Roger Linn Design | AdrenaLinn III |

TC Electronic | Flashback X4 Delay & Looper | Alter Ego X4 Vintage Echo | Nova System | G-System |
FireworX | D-Two Delay | G-Major | G-Major 2 | Flashback Triple Delay | M-One XL | M2000 |
M300 | M3000 | M350 | M-One | Flashback Triple Delay | Ditto X4 Looper |

TC Helicon | TC Helicon VoiceLive 3 Extreme | VoiceLive 3 | VoiceLive 2 | VoiceLive |

BOSS | DD-500 Digital Delay | SL-20 Slicer | RC-50 Loop Station |
GT-100 COSM Amp Effects Processor
| GT-10B Bass Effects Processor |
GT-10 Guitar Effects Processor | GT-8 Guitar Effects Processor | GT-Pro Guitar Effects Processor |
GT-6 Guitar Effects Processor | GT-6B Bass Effects Processor |

Electro-Harmonix | 8-Step Program | 45000 - Multi-Track Looping Recorder | 2880 - Stereo Multi-Track Looper |

Molten Voltage | G-Quencer .:. revolutionary DigiTech Whammy Controller |
MIDI Delaytion
.:. Analog Delay Control Station for modified MXR Carbon Copy and Malekko Ekko 616 delays |

Roland | VG-99 V-Guitar System | EF-303 Groove Effects | GR-55 Guitar Synth |

Kemper | Profiler Amp | Profiler Rack |

Empress Effects | Phaser | Tremolo 2 | both via MIDIbox |

Chase Bliss | Spectre flanger | Warped Vinyl vibrato/chorus | Wombtone phaser | Gravitas tremolo | all 4 via MIDIbox |

Pigtronix | Infinity Looper | Echolution 2 | Echolution 2 Deluxe |

Boomerang | III Phrase Sampler |

Damage Control | Glass Nexus | TimeLine |

Fractal Audio Systems | Axe-Fx II XL | Axe-Fx II Mark II |

Gig-Fx | Pro-Chop Tremolo |

Source Audio | Orbital Modulator | Manta Bass Filter | both via SoundBlox Hub |
Reflex Expression Controller | Nemesis Delay |

Looperlative | LP2 Mini Looper |

Sonuus | Voluum |

Lexicon | PCM-80 | PCM-81 | PCM-90 | PCM-91 | MX200 | MX300 | MX400 | LXP-1 | LXP-5 | LXP-15 | LXP-15-II |MPX-1 | MPX-100 | MPX-110 | MPX-200 | MPX-500 |
MPX-550 |

Z-Vex | Super Seek-Wah | Super Seek-Trem | Super Seek Ringtone |



Sync
Classic Effects that have a 1/4" tap switch jack to MIDI Clock using MASTER CONTROL and CTL-Sync by Molten Voltage.

Tap Input Effects include:

BOSS | DD-20 Giga-Delay | DD-7 Delay | DD-5 Delay | PH-3 Phase Shifter | AW-3 Dynamic Wah |
ME-8 Guitar Multiple Effects | ME-8B Bass Multiple Effects |

JHS Pedals | Panther Cub Delay | Panther Analog Delay | Emperor Analog Chorus / Vibrato |

Strymon | Flint Tremolo & Reverb |

Visual Sound | Dual Tap Delay |

Marshall | EH-1 Echohead Delay |

Molten Voltage | TOGGLE |

Empress Effects | Phaser | Tremolo 2 |

Throne Room Pedals | Tremolo |

Bomes Electric | Ape Delay |

TC Electronic | G-Force |

Alesis | Quadraverb 2 | Quadraverb Q20 |

Catalinbread | Sempahore Tremolo |

Providence | Chrono Delay |

Moog | MF-105 MuRF | MF-105b Bass MuRF |

Walrus Audio | Bellweather Analog Delay |

AnalogMan | ARDX20 Dual Analog Delay with AMAZE0 interface |

Cusack* | Tap-A-Scream | Tap-A-Fuzz | Tap-A-Delay | Tap-A-Phase | Tap-A-Whirl | Tiny Tap Delay | *Cusack pedals require a 1/4" to RCA cable



Sync
Classic Effects that have a 1/4" 5-volt Control Voltage jack to MIDI Clock using TEMPODE and CV-Sync by Molten Voltage.

CV Input Effects include:

Dawner Prince | Starla Tap Tempo Tremolo | (requires 1/4" to RCA adapter)

Electro-Harmonix | Clockworks |



Sync most Line 6, Behringer, T-Rex, and Free The Tone devices to MIDI Clock using MASTER CONTROL and SIXY by Molten Voltage.

Line 6 | M13 | Pocket POD | Floor POD Plus | POD 2.0 | POD Pro | POD XT | Bass POD XT | POD X3 Live | POD X3 Pro |
Vetta II | Vetta II HD | Flextone III | HD 147 | Helix |

T-Rex | Replica Delay |

Free The Tone | Flight Time Delay |

Behringer | V-Amp |



Molten Voltage
also offers TEMPODE, a simple way to add MIDI Clock to your rig if you already have a PedalBoard MIDI Controller.





Also Available:

MIDI Delaytion .:. Sync MXR Carbon Copy and Malekko Ekko 616 / Dark Ekko analog delays to MIDI Clock!



Key Features
:

• Fully functional stand-alone Master Controller for PedalBoard MIDI devices
• Turns on and off effectsMV-58 angled
• Recalls effect presets
• Sends MIDI Clock to synchronize all your MIDI gear
Stores the MIDI Clock tempo for each program
• Simple, intuitive user interface
• Versatile tempo control, including Precision Tap Tempo - better then 1 / 25,000th of a second!
• Large vivid LED display -- very easy to read
• Solid, Professional-Grade construction, including Riveted Steel MIDI Jack
• MIDI Program Change, and MIDI Start, Stop, and Clock output
• Robust, 128 program storage
• Causes other compatible Molten Voltage devices to self-program

MV-58B additional features:
• Displays 16 banks of 8 programs each
• Quick-access program selection with up to four (4) flexible Side Controllers
• Place side controllers strategically around your PedalBoard for maximum efficiency
All 4 Side Controllers and 1/4" Stereo Cables Included!



MASTER CONTROL
is powered by standard "BOSS" type 9-volt DC, 2.1mm, 200mA min., tip negative power supply (sold separately). Current draw ~ 120mA.

MV-58 Dimensions: 7.3" (186mm) Wide x 4.8" (122mm) Deep x 2.3" (59mm) Tall
MV-58B Dimensions: 7.8" (199mm) Wide x 4.8" (122mm) Deep x 2.3" (59mm) Tall
MV-58B Side Controller Dimensions: 4.5" (115mm) Wide x 2.5" (64mm) Deep x 1.9" (49mm) Tall

Bomb-proof design ensures flawless functioning.  Road-ready MIDI Machinery™.

Hand built in Oregon, USA by Molten Voltage.




Delaytion Owner's Manual MASTER CONTROL MV-58 Owner's Manual
Delaytion Owner's Manual MASTER CONTROL MV-58B (with Side Controllers) Owner's Manual
